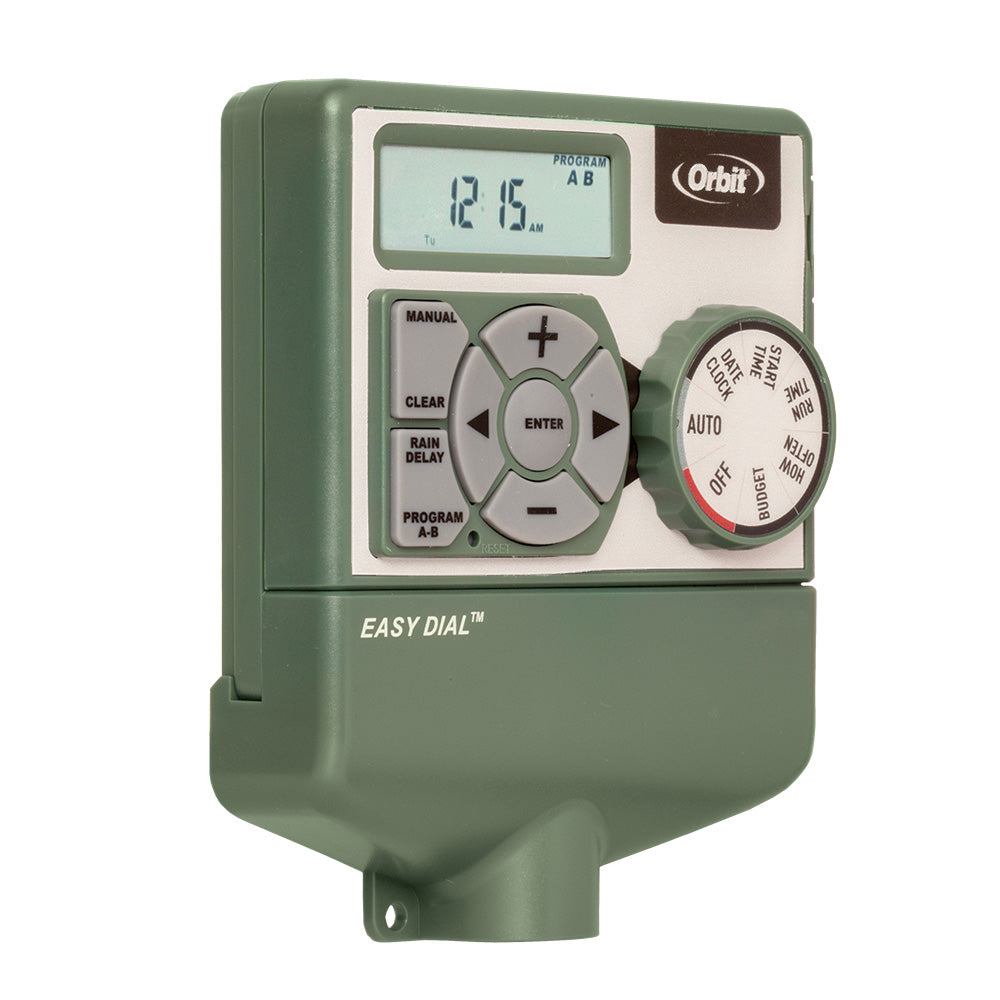

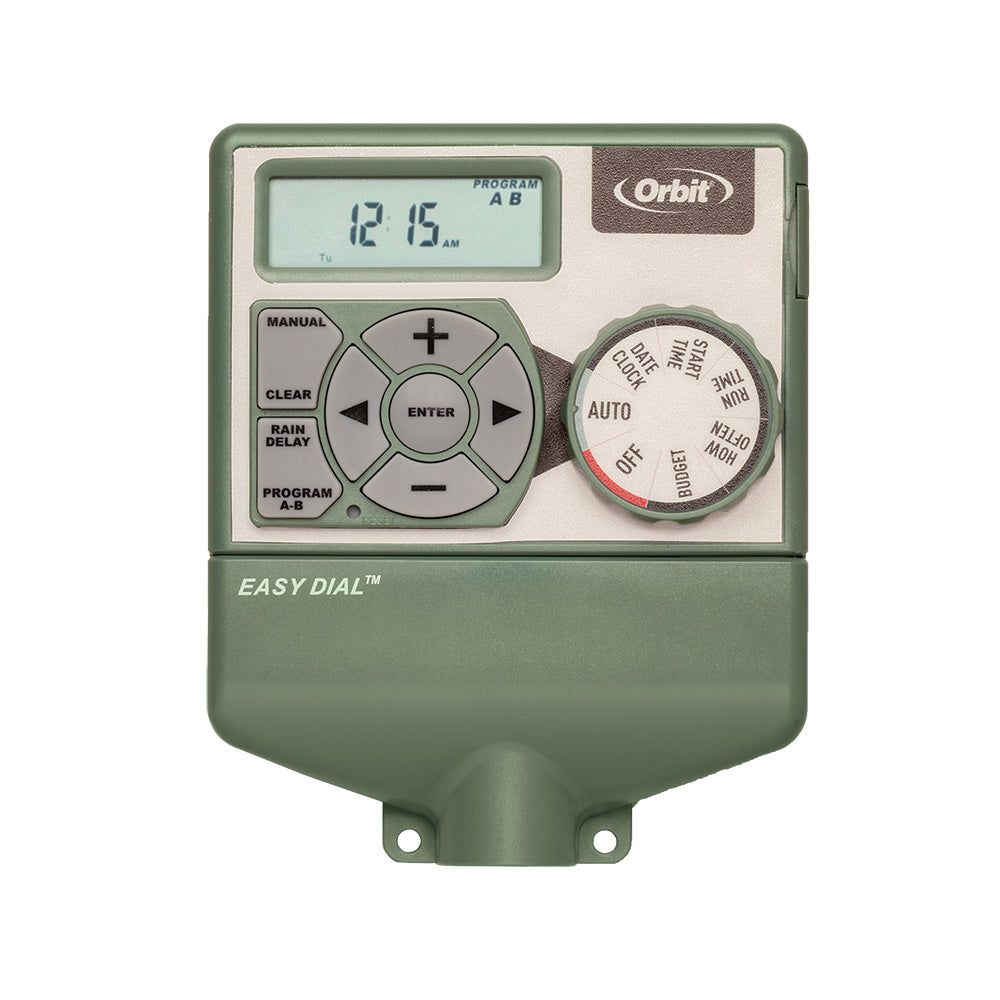

The Easy Dial indoor sprinkler timer/controller is the simplest way we know to control 24 VAC sprinkler systems with up to 6 zones/stations. This timer is engineered for installation in an indoor location, meaning a covered place that is not exposed to water. You can use it in an outdoor location if you place it inside an Orbit outdoor cabinet. It can power a pump start relay and one valve solenoid at the same time.
The A and B program slots allow you to set up to two unique watering schedules tailored to different types of zones in the yard. Each program has space for four different start times which allows you to create cycle and soak windows that encourage water infiltration into the soil. The Easy Dial sprinkler timer will automatically “stack” overlapping runtimes from different programs so that only one solenoid is running at any given time. The manual run feature allows you to run one zone, select zones, or all zones for a specified length of time, which is very convenient for zone testing or supplemental watering. It has a rain delay feature at the timer which allows you to skip watering zones for a configurable time when Mother Nature is taking care of the watering, and a relay switch for adding an automatic rain and freeze sensor (sold separately).

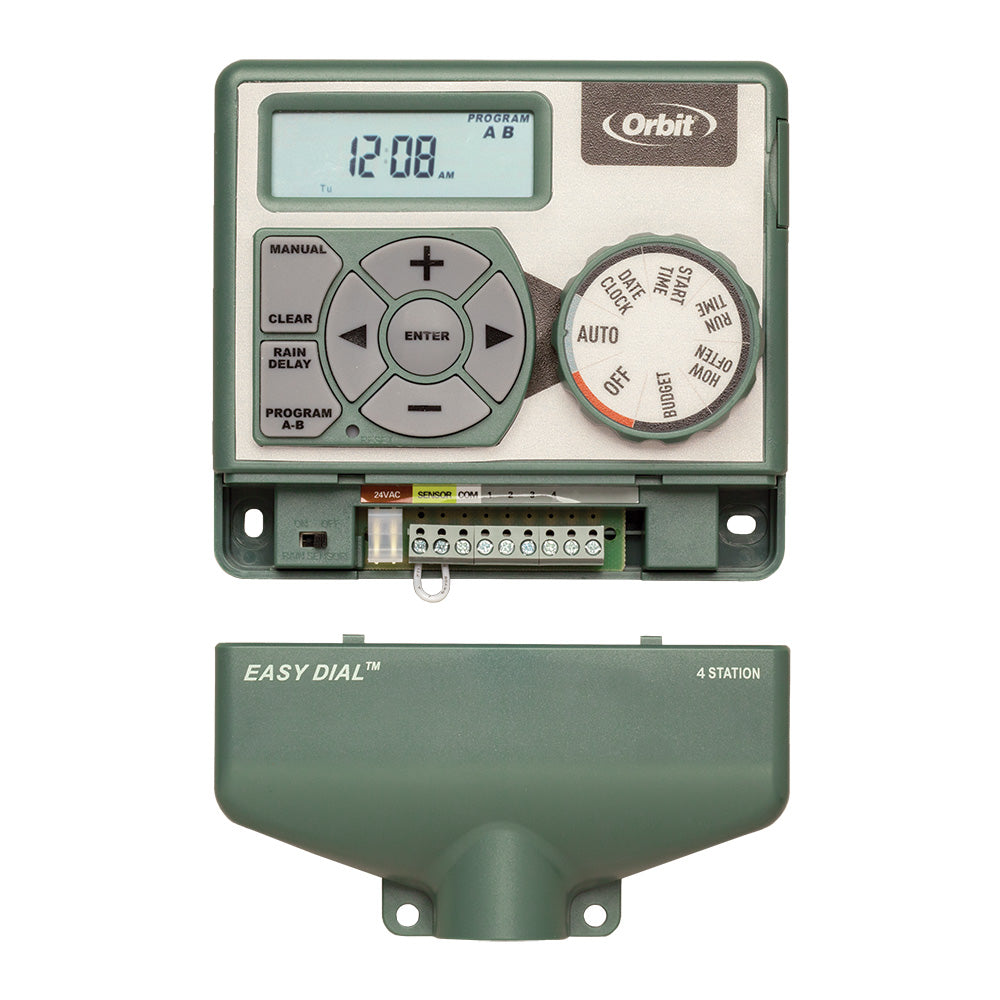

Installation is as simple as mounting the timer on the wall, putting the common wire (typically white wire) in the C terminal and the individual zone wires in each of the numbered station terminals, plugging in the transformer, and setting the schedules. Screw terminals hold the sprinkler wire securely in place. The recommended standard sprinkler wire for this timer is 18 gauge thickness with 5 or 7 strands/wires.
This controller will not activate a weathermatic valve. There is a voltage drop that measures 21.1 volts when the station is in use with a weathermatic valve terminated. It does fire a Hunter valve though. No one can tell me where the problem lies.
J
Jean P.D.
Orbit as a fantastic timer/controller,great support
Great controller easy to install easy to program and very reliable .Highly recommend any new owner of a new sprinkler system and very affordable.👍
J
JSLL
This is an excellent timer that controls up to 4 irrigation valves. It is easy to program. I highly recommend it.
L
Larry O.
Dry happy with set up guidance and ease of programming
